Lifting chain 2-jump with safety and retaining hooks, Ø 8 mm, 2000 kg
Type lifting chain|L: 3000, W: 8 (mm)|Article code: 1944764
Price per item
:
€ 204,95
€ 250,04 inc. VAT
Quantity
Select a version of this product
- Choose type Type
| Delivery time | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
lifting chain | 2-jump with safety and retaining hooks, Ø 8 mm, 2000 kg | grade 80 steel | powder-coated | black | 8 | 0.1 | safety hook + notch hook | - | 1944760 | € 167,95 | 13 November delivered | |
|
lifting chain | 2-jump with safety and retaining hooks, Ø 8 mm, 2000 kg | grade 80 steel | powder-coated | black | 8 | 0.1 | safety hook + notch hook | - | 1944761 | € 176,95 | 13 November delivered | |
|
lifting chain | 2-jump with safety and retaining hooks, Ø 8 mm, 2000 kg | grade 80 steel | powder-coated | black | 8 | 0.1 | safety hook + notch hook | - | 1944763 | € 196,95 | 13 November delivered | |
|
lifting chain | 2-jump with safety and retaining hooks, Ø 8 mm, 2000 kg | grade 80 steel | powder-coated | black | 8 | 0.1 | safety hook + notch hook | - | 1944762 | € 202,45 | 13 November delivered | |
|
lifting chain | 2-jump with safety and retaining hooks, Ø 8 mm, 2000 kg | grade 80 steel | powder-coated | black | 8 | 0.1 | safety hook + notch hook | - | 1944764 | € 204,95 | 13 November delivered | |
|
lifting chain | 2-jump with safety and retaining hooks, Ø 8 mm, 2000 kg | grade 80 steel | powder-coated | black | 8 | 0.1 | safety hook + notch hook | - | 1944765 | € 214,95 | 13 November delivered | |
|
lifting chain | 2-jump with safety and retaining hooks, Ø 8 mm, 2000 kg | grade 80 steel | powder-coated | black | 8 | 0.1 | safety hook + notch hook | - | 1944766 | € 223,95 | 13 November delivered | |
|
lifting chain | 2-jump with safety and retaining hooks, Ø 8 mm, 2000 kg | grade 80 steel | powder-coated | black | 8 | 0.1 | safety hook + notch hook | - | 1944767 | € 241,95 | 13 November delivered |
Specifications
Dimensions & Weight
Length (mm)
3000
Width (mm)
8
Weight (kg)
0.1
diameter (mm)
8
Capacity & Load Bearing
Loading capacity (kg)
2000
Materials & Construction
Material
grade 80 steel
Colour
black
Surface treatment
powder-coated
Functionality & Features
Type
lifting chain
Implementation
2-jump with safety and retaining hooks, Ø 8 mm, 2000 kg
Hook type
safety hook + notch hook
Certifications & Safety
Certification
TÜV Rheinland
Norm
EN 818-4
Product Details
Article code:
1944764
Article arrangement
New
EAN Code (Gtin):
8719424262315
Description

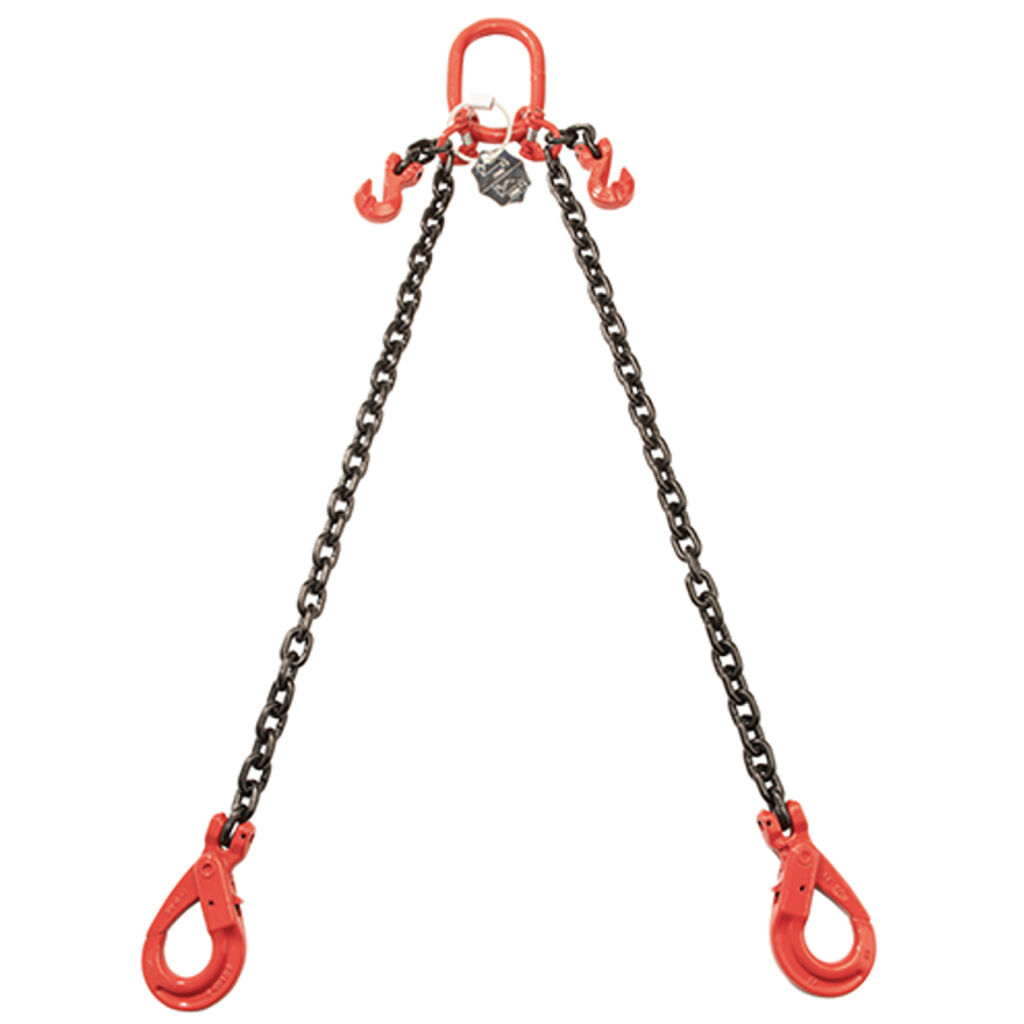

SafetyLoad Chain 2-jump with safety and retaining hooks, Ø 8 mm, 2000 kg.
Chain assembly consisting with retaining hooks, safety hooks and a 3000 mm chain with flap hooks. The chain diameter of the lifting chain is 8 mm and has a working load of 2 tons. The 2-jump can be used in two ways. The first option is a lifting position where the 2-jump is completely extended. The second option is to wrap the 2-jump around a product, this is also called straw use. Manufactured from grade 80 steel. There are several grades of steel from which lifting chains can be made, including grade 80, grade 100 and grade 120. These are the tear resistance grades of steel for use in lifting chains, steel cables and other similar structures. The higher the grade, the higher the tear resistance of the material. Grade 80 steel is one of the most commonly used materials for lifting chains and is well suited for most applications. It is strong, durable and has excellent corrosion resistance. However, it is not suitable for heavy and dangerous applications where the lifting chain must be loaded under high tension.
Applications:
- Ideal for lifting and transportation operations in harsh environments.
- Suitable for both symmetrical and asymmetrical loads.
- Widely used in workshops, shipyards, construction sites and warehouses.
The lifting chain meets all legal safety requirements and is manufactured according to the CE standard and EN 818-4 standard and comes with a product certificate as standard (TÜV/GS certified).
